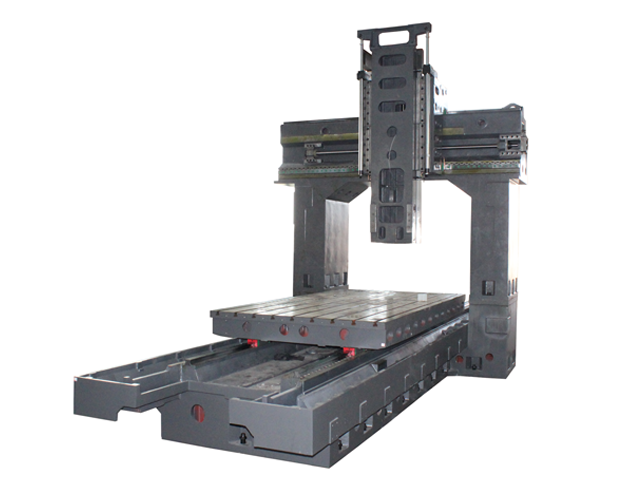

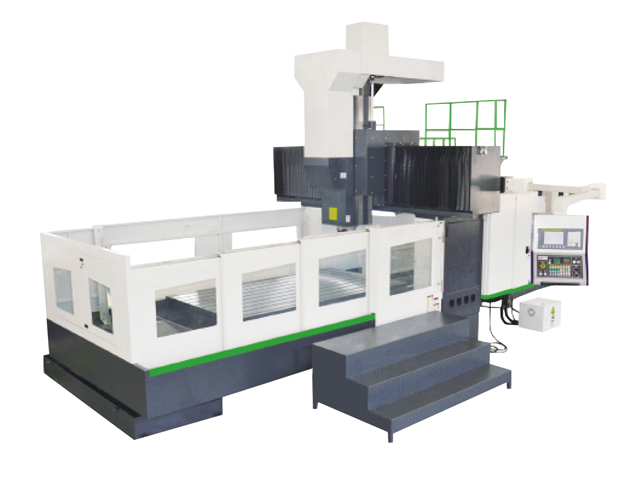

●The thick column structure provides the best support rigidityof the beam;
●The three-axis screw adopts a hollow oil-cooled design,
●which effectively suppresses the thermal elongation ofthe screw;
●The main shaft and the three-axis screw are independently cooled to ensure the best thermal balance control;
●The best center symmetrical spindle system design, strong, stable and durable, and large in expansion;
●The base is designed with high rigidity to provide the best dynamic leveling accuracy at maximum load.
| Model | GMC-2018 | GMC-2518 | GMC-3018 | |
| Worktable size(W*L) mm | 1600*2000 | 1600*2500 | 1600*3000 | |
| X(mm) | 2000 | 2500 | 3000 | |
| Y(mm) | 2000 (induding tool change travel | |||
| Z(mm) | 1000 | 1000 | 1000 | |
| Gantry width(mm) | 1800 | 1800 | 1800 | |
| Max workpiece height(mm) | 1300 | 1300 | 1300 | |
| Distance from spind le end face to work table(mm) | 150-1150 | 150-1150 | 150-1150 | |
| T-skot (number-size x size) | 9-22×180 | 9-22×180 | 9-22×180 | |
| Spindle specifications (Model/Installation diameter) | BT50/φ190 | BT50/φ190 | BT50/φ190 | |
| Spindle transmission mode | Belt | Speed 6000r/min | Speed 6000r/min | Speed 6000r/min |
| Transmission ratio1:1 (1.5:1 optional) | Transmission ratio1.5:1(1:1 optional) | Transmission ratio1:1 (1:1 optional) | ||
| Optional ZFreducer + belt | ||||
| Speed 6000r/min,gear ratio 4:1 | Speed 6000r/min,gear ra tio 4:1 | Speed 6000r/min,gear ratio 4:1 | ||
| Rapid traverse feed rate(my/min) | 15 | 15 | 15 | |
| Cutting feed rate(m/min) | 10 | 10 | 10 | |
| X/Y/Z axis ball screw specification/pitch | X:6312 Y:5010 Z:5010 | X:6312 Y:5010 Z:5010 | X:8020 Y:5010 Z:5010 | |
| X/Y/Z-axis guide specification/number of sliders | X-axis:Roller guide 55/8 | X-aois:Roller guide 55/8 | X-axis:Roller guide 55/10 | |
| Y-axis:Roller guide 55/4 | Y-axis:Roller guide 55/4 | Y-axis:Roller guide 55/4 | ||
| Z axis:rectangular slide guide | Z ads:rectangular sick le guide | Z axis:rectangular slide guide | ||
| X/Y/Z axis servo motor transmission mode and transmission ratio | X/Y/Z axis direct connection | X/Y/Z axis direct connection | X/Y/Z axis direct connection | |
| Spindle motor selection recommendation | 22kw wide area motor | 22kw wide area motor | 22kw wide area motor | |
| X/Y/Z torque | X:38N. m/Y:30N. m | X:38N. m/Y30N. m | X:38N. m/Y:30N. m | |
| Servo motor recommendation | Z:30N. m (holding brake) | Z:30N. m (holding brake) | Z:30N. m(holding brake) | |
| Dimensions(mm) | 6000*4500*4500 | 7000*4500*4500 | 8000*4500*4500 | |
| Max load(kg) | 6000 | 7000 | 8000 | |
| Weight(kg) | 21500 | 24000 | 27500 | |
